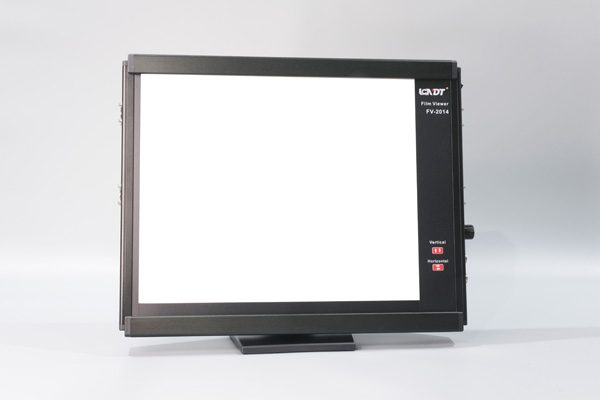

14*17 inch Industrial X Ray LED film viewer FV-2014



product image
product image
product image
product image

Product Characteristics

  • 16.1” × 13” window size (fit 17” × 14” film)
  • Electronic light mask in vertical and horizontal - World 1st

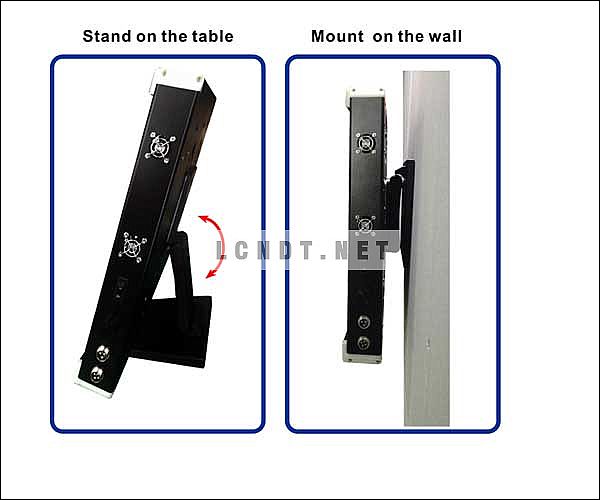

  • Rugged viewer feet, support any angle and wall mount
  • Max. Luminance:≥82,800Cd/M2(260,000Lux)
  • Complies with ISO 5580 and EN 25580

    • Fashion design and Reliable mechanism

    FV-2014 looks like a fashion LCD, but it is a really High luminance LED Industrial film viewer. It combines our newest electronic technology and most reliable LED driven circuit. Thanks to it, this viewer can view film density up to 4.2 H/D, and can be operated 24 hours continuously.



    Electronic light mask



    FV-2014 not only support 14" * 17" film, but also support any film size. Because FV-2014 do have a strong LED switch control. Under its help, you can switch on or off any parts of area in the viewer window.




    Spare parts list:

    Power adaptor: 1

    Power line: 1

    Foot pedal: 1

    Instruction (English) :1

    Guarantee and report (English):1

    Max Luminance: >=82,800Cd/M2(260,000Lux) Uniformity: g>=0.9
    Density: 3.9 H/D
    Diffusion Factor: σ'>=0.9 Viewer window: 335 x 410mm (13 x 16.1 inch)
    Surface temp. rise <=20 oC
    After 12 hours continues maximum luminance    		 POWER: 47～63Hz 90～132VAC or 180～164VAC (change by internal switch)
    Dimension: 510 x 410 x 70mm
    20.1 x 16.1 x 2.7 inch (L x W x H)    		 Weight: 7.4Kg (16.3 lbs)
    Complies with ISO 5580 and EN 25580
    CE Approved 2 Years Free Warranty
